L. Crumpler, MER Science Team & New Mexico Museum of Natural History & Science

The Mars Exploration Rover Opportunity is still exploring Mars. Below is a brief field report summary of its latest activity.




Latest Report


Publish Date:
Thursday, June 14, 2018 - 10:00am

Sol 5114 - A Major Dust Storm on Mars

Opportunity was continuing to gather data from outcrops in Perseverance Valley up until the end of May and the first week of June. But then a dust storm developed to the northwest and unexpectedly expanded into Merdiani Planum where Opportunity is exploring.

In one sol (Mars day) the power output of the solar panels dropped from nearly 700 W-hrs to 123 W-hrs. By the next day the power had dropped to 22 W-hrs. The optical opacity factor of the atmosphere, which is normally described by numbers like 0.3-0.5, sky rocketed to outrageous numbers. During the previous dust storm back in 2007, the opacity was about 5. The last report on Sunday indicated a factor of 10.8! A new Martian record.

This sequence of images from an Earth telescope shows the sequence of development of the storm on June 7.

The Mars Reconnaissance Orbiter (MRO) does daily ("solly"?) weather images of Mars. This shows the entire surface of Mars in cylindrical projection with Opportunity in the centter near 2 degrees south/ 354 degrees east.

Opportunity regularly looks at the Sun through a filter to determine the amount of dust in the sky. I think this pretty well shows that there is a lot of dust in the sky since June 8.

Here is a solar array power output plot that I put together on a daily basis, this one right after the last downlink on sol 5109. Right now the power output is the lowest that we have ever seen on Opportunity. Before last week the array output was close to 700 W-hrs or almsot as good as the day it landed  almost 15 years ago. In the last downlink the power was the lowest ever recorded.

Here is what MRO/HiRISE is seeing. And even the Curiosity site is finally being affected as shown on the right.

This graphically depicts how bad the dust storm is. It's dark at Opportunity right now. This series is actually a simulation using real solar images taken by Opportunity, but scaled in brightness according to actual values of opacity that were measured.

We like to keep the power up to 100 W-hrs even in the worst of winter times as a “margin” just to make certain that internal heaters can be called on if a night is particularly cold. But 22 W-hrs will not even operate basic activities, like communication with the orbital relay satellites. Following a last communication on Sunday, we have not received messages from Opportunity.  To conserve what energy it has Opportunity therefore is programmed to disconnect the batteries and go into a deep “sleep”, only running a mission clock to keep track of time. During the sleep it wakes periodically to see if there is any solar power input yet. If not it returns to sleep. In the winter this would be bad, because heaters are necessary to avoid freezing the electronics at temperature below a design limit. Fortunately, the dust storm is occurring during the beginning of Martian summer and the storm itself is acting like a blanket on the atmosphere keeping thing from getting really cold. The heaters are not expected to be needed.

So as of June 13 we expect Opportunity is hibernating (lower power fault) and will wake up after the storm passes. When it has enough power to communicate it will try to communicate during certain times of day.  Beginning June 13, the mission began to open emergency communication windows at the specified times just in case the storm passes and Opportunity tries to communicate. We do not know how long it will take for the solar energy to be sufficient because we do not know how dusty the solar panels have gotten.





Archived Reports


Since my last post Opportunity has successfully driven from the summit of Cape Tribulation (the name we gave the highest point on the rim). The goal has been to arrive at a deep notch or valley ("Marathon Valley") in the crater rim by about March 15. Remote sensing from the orbiting Mars Reconnaissance Obiter (MRO) has shown that some spectacular exposures of weathered and altered minerals should be exposed there. That is always a clue that it is geologically very interesting in more than just minerals and chemistry.

Opportunity just finished up the super crater overview panorama, pulled away from the summit (here at -1380 m) and we are on our way to Marathon Valley! It's all downhill (about 70 m down in elevation) from here.

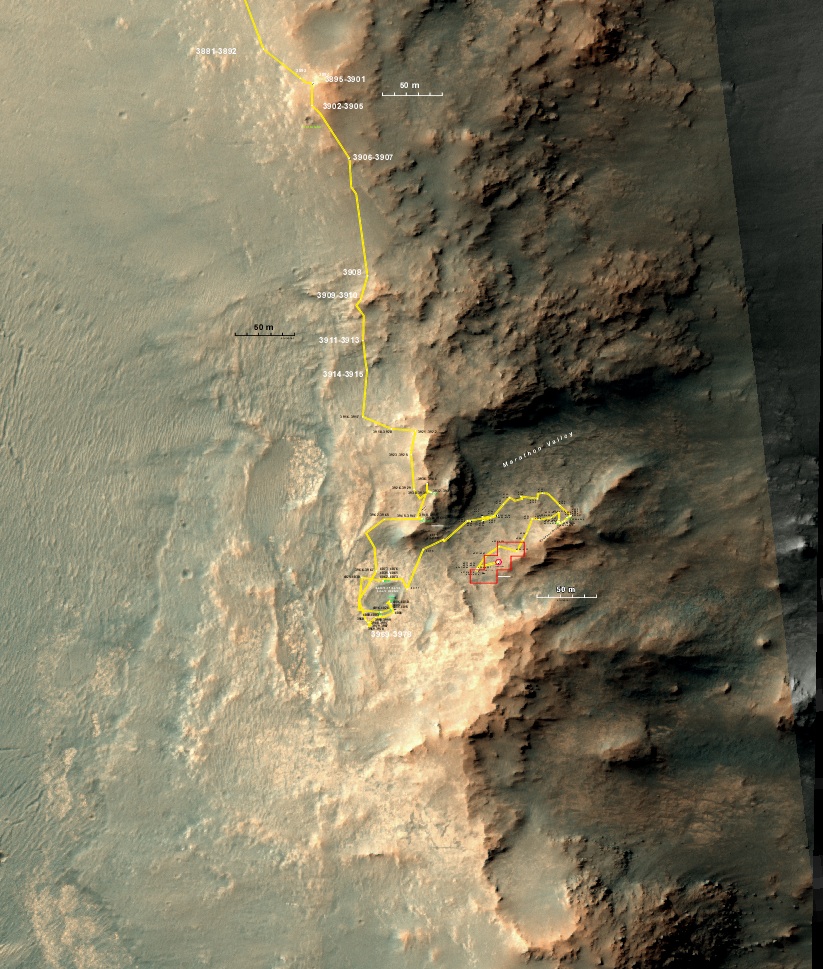

Above is a map showing the drive and 1 m contours. Note the small impact crater a few meters to the SW which is visible in the Navcam posted below.

Opportunity made it to the summit!! The view is spectacular. From here we can see all the way to the other side of the crater, we can see the rim looking north along the path to this location, and we can see far to the south, including another large impact crater that lies 10 km or so south of Endeavour.

We will be doing a Pancam color summit panorama over the next few days before moving on. Here is the Navcam pan from this location.

Despite memory problems, Opportunity is forging ahead and is now approaching the highest point on the rim of Endeavour crater. The view is beginning to be spectacular.

Above is part of the Navcam view taken on sol 3893. The view looks across the deck of the rover toward the summit which is now just a few meters away. ON the left you can see the flloor of Endeavour crater and the far rim 12 miles away.

Opportunity is continuing its drives along the rim of the 22-km diameter impact crater Endeavour. In the next few drives it will be at or near the highest peak along the rim, Cape Tribulation summit. At that point Opportunity will be as high in elevation on Mars as it will ever be. The panoramic view from that summit should be awesome. Mid summer is only a few sols away.

Opportunity finished up its work on Wdowiak Ridge and has now continued southward along the rim of Endeavour crater. The ultimate goal is a large valley cutting through the crater rim that we have informally named “Marathon Valley”.

Opportunity continues to work its way up Wdowiak Ridge as it ascend southward along the rim of Endeavour crater. Currently Opportunity is examining some rocks  that were excavated and thrown out of a nearby small impact crater, Ulysses crater.

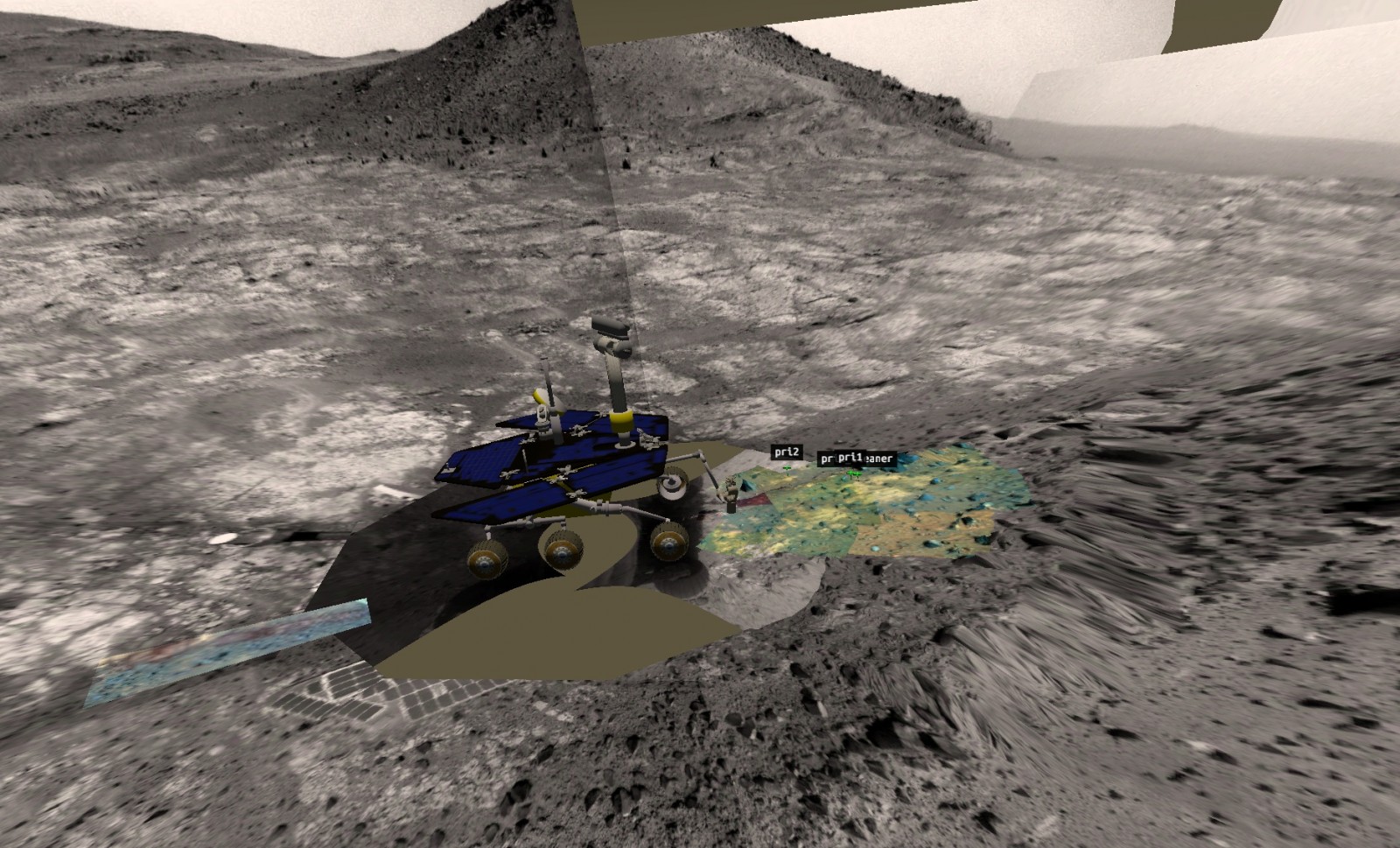

The various positions occupied by Opportunity as it works its way around several rock targets are shown on this overhead view of the local Navcam panoramas.
